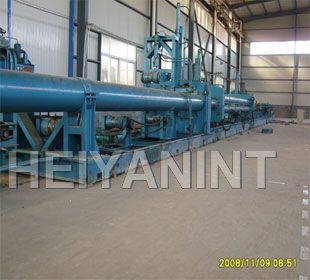

Expanding Machine for Tubes
Expanding Machine for Tubes introduction:
1 When expanding the pipe,usually adopts translate mode,which movement is smooth ,accurate,
and no damage to pipes.
2 This machine uses hot air circulation heating method(double heating) ,each heating furnace
is equipped with multi-level heater furnace cores.
3 Forming mode: adopts qualitative method of internal shape and external pressure,
make size of the nozzle accurate.
4 Expanding machine for tubes has shift switches of straight port and R port in the control panel.
5 The main components all adopt imported components,system performance is stable and reliable.
Technical parameter of Expanding Machine for Tubes
Max processing range of pipe: OD38*2.0 OD 52*2.0 OD 100*2.0
Max stroke of work: 110mm 110mm 110mm
Oil output: 14Mpa 14Mpa 14Mpa
Speed of work: 110mm/3-4sec 110mm/3-4sec 110mm/3-4sec
Dimension of machine: 200*55*130cm 200*60*140cm 200*75*150cm
Weight of Expanding machine for tubes: 1100kg 1250kg 1800kg
