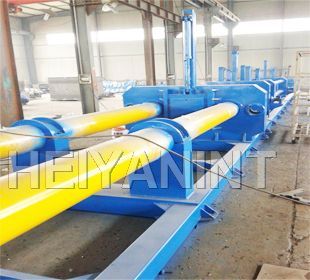

Hydraulic Elbow Machine China
1 Technical parametersHydraulic Elbow Machine China
Elbow OD range: 219~ 1420
Material of pipe: S 355-P 91/P92, 12CrMoV, Q 235, 45#,16Mn, 27SiMn,20G etc,carbon steel ,Alloy steel
2 Main Cylinder: Max pressure: 21Mpa
Stroke: 4500mm
3 Hydraulic pump station
Working pump: 80SCY14-1B (Plunger pump) 2 pieces with 30 Kw motor
In and out pump: PFE-51150 (vane pump) 1 piece with 22 Kw motor
Intermediate Frequency: 30~ 600 Kw (Digital controlled)
5 Characteristics Hydraulic Elbow Machine China
Hydraulic controlled pushing pedal gate
Hydraulic valve adopt Standard series, magnetic valve 24 control
Supporting pipe is equipped
Supporting plate, pushing plate,gate and gate slide way are under careful process
Valve gate, pushing gate adopts 45 # steel plate
Annealing treatment after welding of supporting plate and pushing plate etc.
passivation and picking treatment after welding pump oil pump
6 Main part
Main body of elbow machine, operating panel, water knockout drum, oil container pump station, coil adjusting shelf, intermediate frequency
7 Machine not include
elbow moulds, mould draw bar, hydraulic oil, intermediate frequency, cable, recycling water system
Hei Yan Group also manufacture hydraulic Pipe Bending Machine,Pipe Expanding Machine,Cold Forming Tee Machine etc.
