Calibration press machine

Category:Calibration press machine
Material:Carbon Steel,stainless steel
Properties:150 tons - 2000 tons
Application:Petroleum,Pipeline project,Gas,Bridge
tag:Calibration Press Machine-Calibration Hydraulic Press Machine -Calibration Hydraulic Press Machine 150 ton-Elbow Forming Machine-Tee Machine,

If you can envision it,We can supply it. E-mail:sales@heiyanint.com

Description
Specification
Congeneric Products

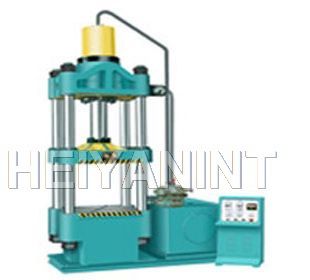

Calibration Press Machine

Calibration Press Machine are suitable for the pressing, drawing, edging, bending, adjusting, cold installing, cold and hot forging and etc for metal and non-metal materials.

Calibration Press Machine:
working pressure of this series of hydraulic machines can be adjusted in the certain scope during working process according to the technical requirement.

The power system are controlled by keyboards

Achieve to three operation way:adjusting, manually and semi-automatically

4 column hydraulic press 150 ton is a small machine,but structures are strong enough,easy to maintenance and repair.

Hei Yan also supply Calibration Press Machine , elbow forming machine,Bevel machine,induction pipe bending machine etc.

What you need,our reliability.

HYY-150	HYY-200	HYY-250	HYY-300	HYY-400	HYY-500	HYY-600	HYY-800
Capacity (T)	100	150	200	250	300	400	500	600	800
Table area (LRXFB) (mm)	800*1000	900*1200	1000*1200	1000*1500	1200*1500	1200*1800	1200*1800	1500*2000	2000*2500
Open height (mm)	650	800	950	950	1100	1100	1100	1250	1500
Stroke(mm)	500	600	700	700	800	800	800	900	1000
Descending speed(mm/sec)	300	300	300	300	300	300	300	300	300
Pressing speed(mm/sec)	9/25	10/30	10/25	7.5/25	7/20	8/20	8/20	8/20	7/16
Ascending speed(mm/sec)	220	235	250	250	250	250	250	250	240
Cushion capacity (mm)	30	60	70	100	100	150	150	200	250
Cushion stroke (mm)	200	250	250	300	300	350	350	400	400

HYY-150	HYY-200	HYY-250	HYY-300	HYY-400	HYY-500	HYY-600	HYY-800
Capacity (T)	100	150	200	250	300	400	500	600	800
Table area (LRXFB) (mm)	800*1000	900*1200	1000*1200	1000*1500	1200*1500	1200*1800	1200*1800	1500*2000	2000*2500
Open height (mm)	650	800	950	950	1100	1100	1100	1250	1500
Stroke(mm)	500	600	700	700	800	800	800	900	1000
Descending speed(mm/sec)	300	300	300	300	300	300	300	300	300
Pressing speed(mm/sec)	9/25	10/30	10/25	7.5/25	7/20	8/20	8/20	8/20	7/16
Ascending speed(mm/sec)	220	235	250	250	250	250	250	250	240
Cushion capacity (mm)	30	60	70	100	100	150	150	200	250
Cushion stroke (mm)	200	250	250	300	300	350	350	400	400

HYY-150	HYY-200	HYY-250	HYY-300	HYY-400	HYY-500	HYY-600	HYY-800
Capacity (T)	100	150	200	250	300	400	500	600	800
Table area (LRXFB) (mm)	800*1000	900*1200	1000*1200	1000*1500	1200*1500	1200*1800	1200*1800	1500*2000	2000*2500
Open height (mm)	650	800	950	950	1100	1100	1100	1250	1500
Stroke(mm)	500	600	700	700	800	800	800	900	1000
Descending speed(mm/sec)	300	300	300	300	300	300	300	300	300
Pressing speed(mm/sec)	9/25	10/30	10/25	7.5/25	7/20	8/20	8/20	8/20	7/16
Ascending speed(mm/sec)	220	235	250	250	250	250	250	250	240
Cushion capacity (mm)	30	60	70	100	100	150	150	200	250
Cushion stroke (mm)	200	250	250	300	300	350	350	400	400

HYY-150	HYY-200	HYY-250	HYY-300	HYY-400	HYY-500	HYY-600	HYY-800
Capacity (T)	100	150	200	250	300	400	500	600	800
Table area (LRXFB) (mm)	800*1000	900*1200	1000*1200	1000*1500	1200*1500	1200*1800	1200*1800	1500*2000	2000*2500
Open height (mm)	650	800	950	950	1100	1100	1100	1250	1500
Stroke(mm)	500	600	700	700	800	800	800	900	1000
Descending speed(mm/sec)	300	300	300	300	300	300	300	300	300
Pressing speed(mm/sec)	9/25	10/30	10/25	7.5/25	7/20	8/20	8/20	8/20	7/16
Ascending speed(mm/sec)	220	235	250	250	250	250	250	250	240
Cushion capacity (mm)	30	60	70	100	100	150	150	200	250
Cushion stroke (mm)	200	250	250	300	300	350	350	400	400
